一.Working Principle

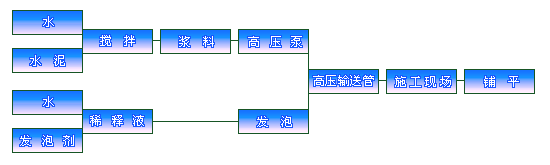

     FP30A cement foam machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; according to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; in the pipeline form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline. Its work-flow as follows :

     二.Performance Characteristics
     On the basis of taking advance of the principle of the structure from advanced facility abroad and seek the user’s advice widely.According to China's actual situation, rely on our rich experience in design and manufacturing the hydraulic equipment, we take the innovation and have a distinct personality characteristics as well as completely independent intellectual property rights.
     The use of double cylinder hydraulic pump water bodies Push mud, exports of high pressure, can meet the needs of high-rise
     Ratio of the various ingredients used in automatic control, The density foam cement
     Adjust easily selected using the homemade quality matching components, reliable
Guaranteed after-sales service can use the high-quality home-foaming agent, lower construction cost with running
Round and Universal Wheels, Mobile and place convenient and flexible
     三.Technical Parameters

Name	Units	Parameter
foam cement throughput	m3/h	20-30
vertical conveyor height	m	120
maximum horizontal transmission distance	m	500
primary motor power	kW	18.5
electrical power	kW	1.5
mixer feeding height	mm	1000
mainframe appearance size	mm	2100×1500×1300
mixer an appearance size	mm	1800×700×800
feeder appearance size	mm	4000×500×450

     The aircraft has also been used for a large number of roofing insulation (roof insulation) project. Roof use of foam insulation materials can play, the role of insulation, insulation,and insulation material effect of the ordinary 20 -30 times, maintain the top indoor temperature and room temperature on other floors, is consistent cool in summer and warm in winter.
     The Tu-160 is the production of light foam cement the ideal equipment for cement mortar to fill the gap, for the most advanced set of hydraulic systems, pneumatic systems, quantitative transmission and optical control of advanced technology and scientific design. Construction of operation to achieve automation, from the feeding and water, the bubbles produced, mixed foam, the high-voltage transmission integrated, easy to operate, stable performance and good results in foam, a Japanese construction machinery output of about 3000-5000 sqm the high-voltage transmission up to 120 meters above the level of transmission over 500 meters. The production equipment used in the production of lightweight foam cement quality assurance, density in accordance with user requirements between 250 -1600kg/m3 arbitrary adjustments. Strength up to 0.6 Mpa, the construction of up to the natural surface level of solidification can be directly pasted various terrestrial materials, Construction is to warm required by the most advanced equipment.
     Apart from the foam machines can be used to warm construction, but also give full play to the performance of equipment, a lot more production of cement foam, Yin separated products, including a variety of specifications for the cement foam plates, foam cement brick buildings on the floor roof. Roof of the use of foam insulation materials can play, and insulation effect.
     Insulation, and insulation material effect of the ordinary 20 -30 times, maintain the top indoor temperature and the indoor temperature of the other floors, is consistent cool in summer and warm in winter. use of the foam roofing cement casting has good permeability, adding proper additives has strong waterproof, alternative other waterproof material to solve the long-standing problem of leaking roof and a highly efficient insulation, heat insulation, waterproofing materials, low cost, simple process. Can be used for walls, water pipes, heating pipelines, and oil pipelines and other pipeline insulation, moisture-proof, corrosion-resistant. Can also be used for water, sewage pipes antifreeze, preservation and effectively extend the life of pipeline.
     Apply to fill the gap within the mine tunnel, the low-temperature refrigeration and insulation in the cold wind.
